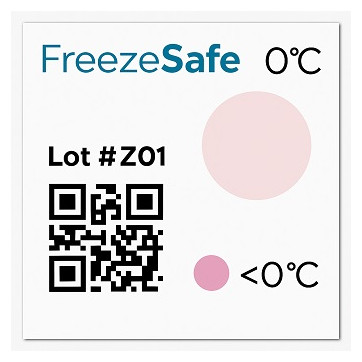

Freezesafe label for temperature drop control View larger
Previous Next

FREEZESAFE temperature drop indicator (pack 100 units)

The FREEZESAFE temperature drop indicator is an adhesive label that, by means of a color change, alerts us that the temperature has dropped below a critical value. The color change is permanent and irreversible, so it acts as a control indicator, recording the event. It is supplied in packs of 100 units.

More details

184,17 €

Select range in the dropdown:

100 uds

The FREEZESAFE label is an adhesive sensor for monitoring temperature drops. Knowing whether the correct temperature has been maintained is essential for the cold chain. This self-adhesive label provides evidence of whether your product has been exposed to critically low temperatures.

The FreezeSafe temperature indicator accurately and irreversibly shows whether there has been an unwanted temperature drop below the optimal threshold.

Its operation is simple; just stick it on the product or box of products to be monitored, and the indicator will change color from transparent to magenta if the temperature drops below the established value for a sufficient amount of time. As soon as the temperature drops, the indicator changes from transparent to magenta until it reaches the shade shown on the label.

The indicator is irreversible, so once it has changed due to a drop below the critical temperature, it remains permanently magenta, alerting of what has happened. This allows you to check later if a product has been subjected to an unwanted temperature, during transport or storage.

FREEZESAFE is a simple and economical method to control the temperature drop during the cold chain as well as the transport of medicines, vaccines, food and other products, which if exposed to freezing temperatures, or simply cold, can be damaged.

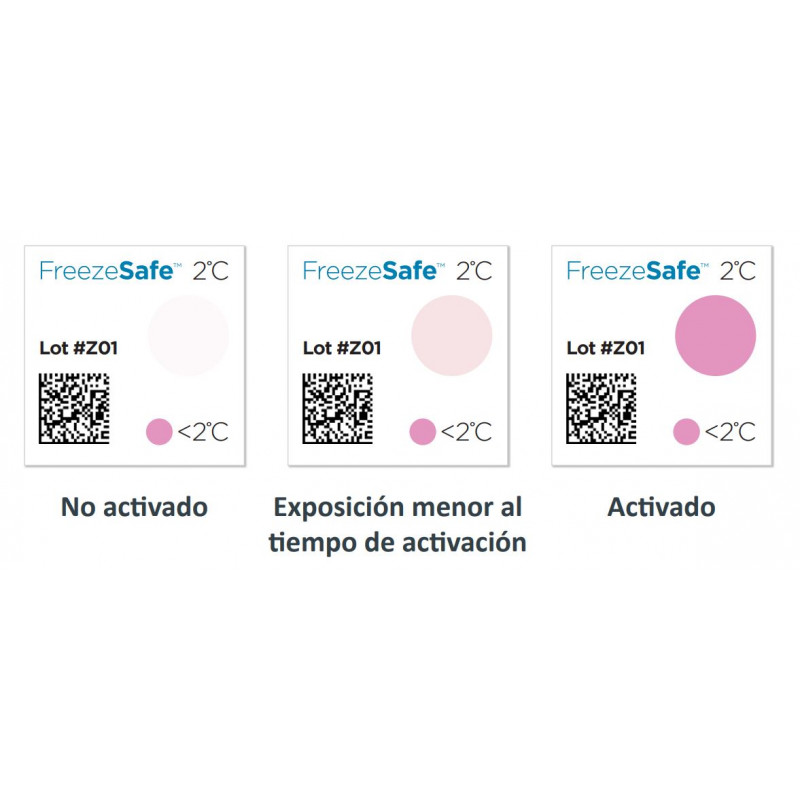

The color change is gradual, allowing you to see if the exposure to the unwanted temperature has been momentary or continuous. The label has a sample point with the magenta hue that will reach the control point after being fully exposed. This allows us to compare the magenta dot to the sample to see if it has only been exposed for a short period of time, in which case the magenta shade will be lighter than the sample, or if it has been exposed for the full amount of time, in which case the color shade will be like the sample.

For each temperature, there is a specific time in which the dot will fully reach the magenta hue. The available temperatures and times required for the complete color change are detailed in the following table.

Available temperatures and full activation time:

  • -3°C / 27°F - Full activation 120 min (coming soon)
  • 0°C / 32°F - Full activation 60 min

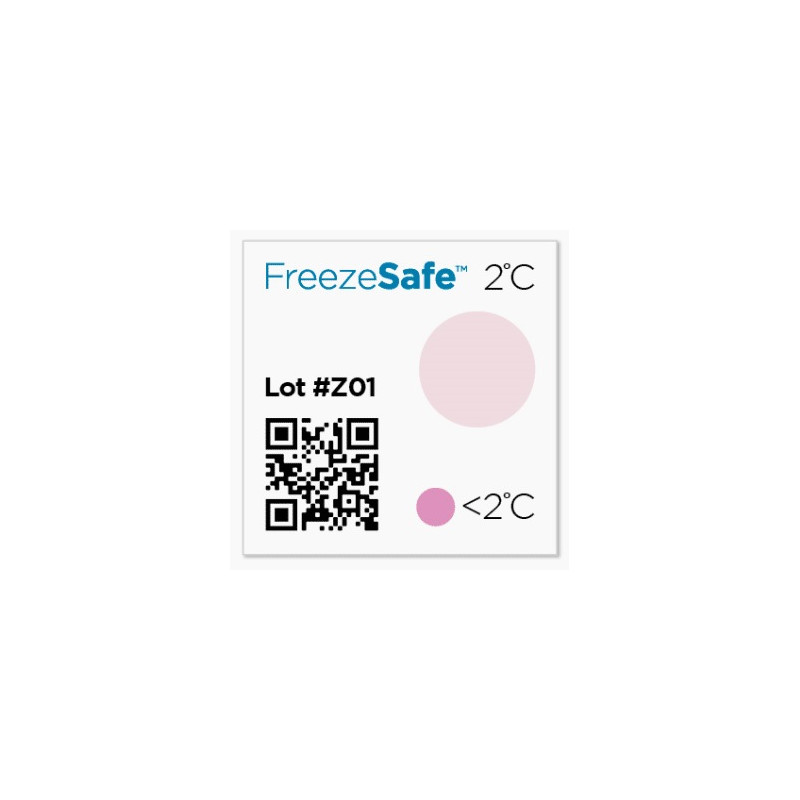

  • 2°C / 36°F - Full activation 90 min

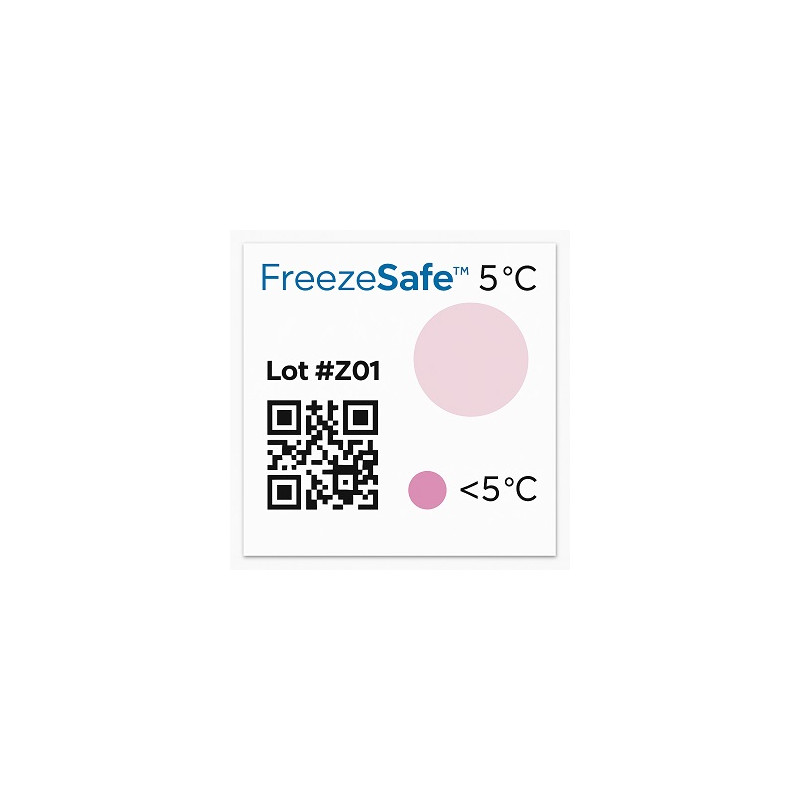

  • 5°C / 41°F - Full activation 120 min

This product does not contain batteries or environmentally harmful components. It is easy to deploy and can be monitored by unqualified personnel.

  • Accuracy:±1°C / ±2°F
  • Size:0.83” x 0.83” (21 mm x 21 mm)
  • Visual Indication:Clear to Magenta
  • Storage Requirements:Store unused product out of direct light between 15°C and 25°C / 59°F and 77°F
  • Shelf Life:1 year
  • Type of supply: containers of 100 units
  • Usual delivery time: 4-5 weeks

Reach compliant: The Freezesafe indicator complies with EU REACH Regulation (EC) No 1907/2006

Rohs compliant: This indicator complies with the regulations of Directive 2011/65/EU on the Restriction of Certain Hazardous Substances, adopted in June 2011 by the European Union

Uses of the Freezesafe temperature drop sensor

This temperature drop control label is an economical solution that allows you to monitor transport containers (box, pallet, etc.) or even stick the indicator directly on the product.

The Freezesafe can be used during the storage of products that require compliance with the cold chain. It will act as a safety device against the presence of an abnormally low temperature at any time during the product's lifespan, thus preventing an unwanted loss of its properties.

A visual check of the indicator alerts the recipient if the temperature has dropped critically, allowing them to quickly decide whether to accept or reject the product.

Main users of the sensor for thermal monitoring of the cold chain

  • Pharmaceutical manufacturers and distributors
  • Diagnostic laboratories
  • Transport companies
  • Logistics organizations in the food and beverage industry

All of them rely on this temperature indicator to:

  • Detect problems in supply chains Supply.
  • Ensure product safety and efficacy
  • Reduce the volume of non-conforming products

Why use the FreezeSafe™ cold indicator:

  • Easier: Designed to integrate seamlessly into existing packaging, with no pre-activation required.
  • Worry-free: Its slim, flat profile reduces potential breakage or snagging during transport.
  • Easy to read: Easy visual identification from any angle of a cold chain break through a clear color change.
  • Secure: Adheres seamlessly to small or irregularly shaped objects.
  • Ideal: New technology Offering simpler, more effective, and more economical temperature monitoring.
  • Quality:Each indicator is serialized for batch traceability.
